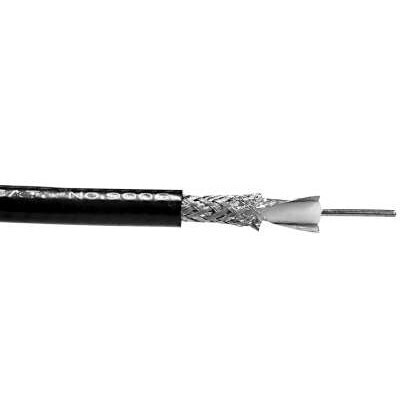

Cable RG58 low Loss Double Screened Coaxial Cable - 50 Ohm - 9.0 dB
RG58 Low Loss Coaxial Cable Features:
Our polyethelene (PE) dielectric cables such as 8058 and 8213 have recently (July 2006) been certified to be free of lead and other banned substances under the European RoHS regulations.
Supplied and priced in 1 meter units
Calculate your shipping
You currently don't have any products in your cart.
For a shipping estimate on this product, please select your region from the dropdown.
Specifications
Impedance Ohms | 50 |
Attenuation per 30M @ 900MHz | 9.0 dB |
Jacket O.D mm | 5.1 |
Center Conductor | 1 x BC 0.94mm |
Dielectric | Cellular Polyethylene (Foam) |
Shield | No.: 2 Type: TC Braid & Al foil Coverage: 100% |
Nominal Velocity % | 80 |
Type of Jacket | Black PVC Non Contaminating UV stabilised |
