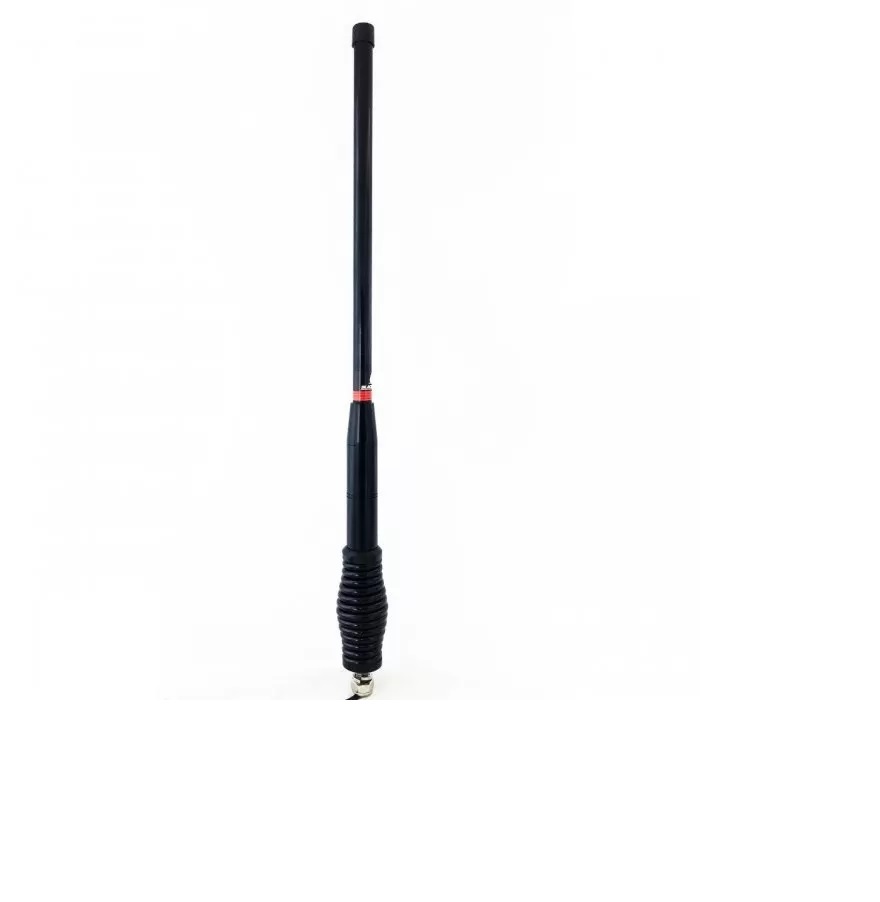

Blackhawk Trucker LITE Compact Antenna 5dBi - 60cm
Click to EnlargeThis premium grade antenna will satisfy 3G and 4G capabilities for all the major networks in New Zealand and can be used for commercial and industrial 3G and 4G applications.
The Blackhawk Omni Trucker LITE at 60cm will provide the perfect solution for voice and data applications. Weighing only 1.2kg, the new design includes a smaller barrel which helps reduce weight and minimises vibration and subsequent damage caused by driving on corrugated roads found in remote and harsh environments.
ELECTRICAL SPECIFICATIONS
| Frequency Range,MHz | 698-960 | 1710-2170 |
| Gain, dBi | 4 | 5 |
| VSWR | ≤ 2.0 | ≤ 2.0 |
| Polarization | Vertical | |
| Horizontal Beam-width | 360° | |
| Vertical Beam-width | 48° | 29° |
| Input Impedance | 50 Ω | |
| Max. Input Power | 50 W | |
| Lightening Protection | DC Ground | |
Calculate your shipping
You currently don't have any products in your cart.
For a shipping estimate on this product, please select your region from the dropdown.
Specifications
FEATURES
-
Streamline in design and light in weight
-
Ruggedized construction for extreme conditions.
-
Can be mounted to car bonnet or bullbar
-
Supplied with 4m of PT240 LSHF ultra-flex cable with a pre-fitted SMA male connector
| Connector | SMA-Male with 4.5m Coax Cable |
| Dimensions | ᴓ16 x 600 mm |
| Weight | 1.2 kg |
| Reflector Material | Copper |
| Radome Material | Fibreglass |
| Antenna Colour | Black |
| Operating Temperature | -40°C to +65°C |
| Mounting Pole | ᴓ38 – ᴓ52mm |
