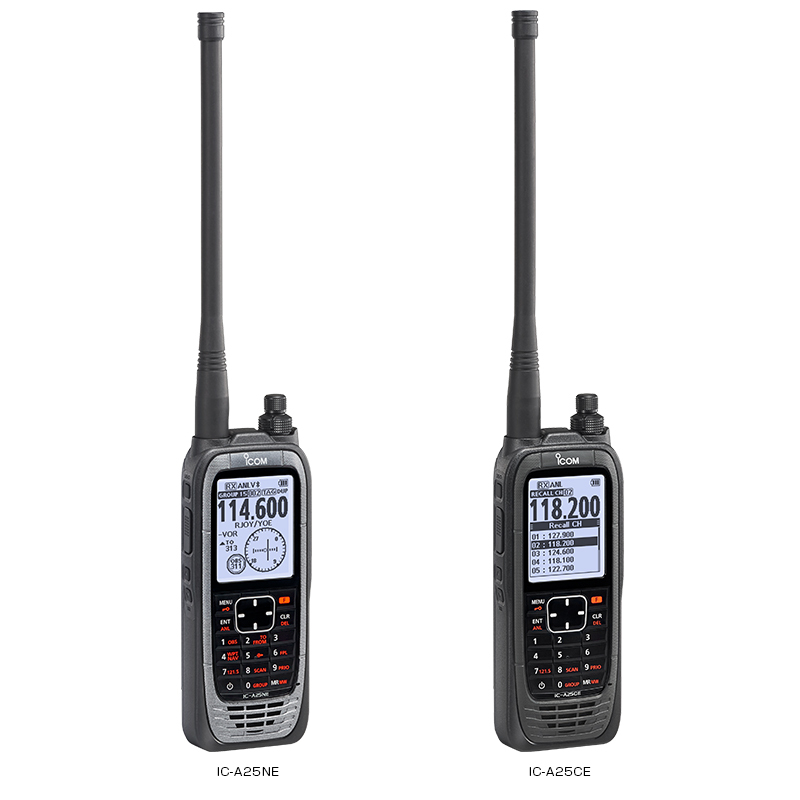

Icom IC-A25NE Airband Portable Radio

NZD1063.75 inc GST (NZD925.00 + GST) All prices on this website are in NZD

Product may not be held in stock or there's more details required to affect purchase.

Please click "MAKE AN INQUIRY" to initiate your order

Next Generation Icom Air Band Radio with Built-in GPS and Bluetooth®

6 Watts High RF Output Power

For expanded communication coverage, output power has been increased to approximately 6 W typical (PEP)/ 1.8 W typical (carrier) compared to the IC-A24E (5/1.5 W PEP/carrier).

Easy-to-Use Interface

Easy-to-Use Interface
* Photo is of the IC-A25NE.
Often used functions are assigned to the keypad and you can directly access a desired function. The enlarged flat sheet keypad offers smooth and swift operation.



2.3 inch Large High Visibility LCD

Night mode screen
Night mode screen
Menu screen
Menu screen
The 2.3 inch large, high contrast and high visible LCD displays user-friendly, graphic screens and ensures good readability under direct sunlight. The operating frequency in large characters can be recognized at a glance. In addition, the night mode option enables easy viewing in low light conditions.



"Flip-Flop" Channel Recall

Recall channel screen
Recall channel screen
The IC-A25NE/CE stores the last 10 channels used. You can easily recall those channels by using the directional keys, the channel knoband the 10 keypad. This is convenient for switching between several channels, such as NAV and COM channels. In addition, you can freely edit (replace, delete, change order) the stored recall channels.



Built-in Bluetooth® for Hands-Free Operation (for IC-A25NE)

A third-party wireless Bluetooth® headset, like a 3M™ Peltor™ WS™ 5*, provides convenient hands-free operation. Also, by using the optional VS-3 Bluetooth® headset, the side tone function can be used.
* Compatibility not guaranteed.

Intelligent Battery with Detailed Battery Status

Detailed battery information screen
Detailed battery
information screen
The supplied BP-288, 2350 mAh typical intelligent battery pack, provides up to 10.5 hours* of operating time. You can check the condition of the battery pack in the battery status screen. It is very useful for optimum charging and battery health maintenance.
* Typical operation with Tx: Rx (Max.audio): standby=5:5:90. (Bluetooth OFF, GPS ON)



Other Features

  • IP57 dust-protection and waterproof construction
  • Operate with six AA size alkaline batteries with the BP-289 battery case
  • BNC antenna
  • 121.5 MHz emergency key
  • Priority watch
  • VFO scan, memory channel scan, priority scan
  • ANL (Auto Noise Limiter) for noise reduction
  • Side tone function enables you to hear your own voice from an external aviation headset
  • Internal VOX capability
  • 300 memory channels (in 15 memory groups) with 12 character names
  • 8.33 kHz channel spacing

VOR Navigation Functions (for IC-A25NE)

VOR screen
VOR screen
The CDI (Course Deviation Indicator) is detailed like a real VOR instrument, and displays any deviation from your course.
The OBS (Omni Bearing Selector) enables you to change course from the original flight plan.
The TO-FROM indicator shows the position relationship between your aircraft and the course selected by the OBS.
The ABSS (Automatic Bearing Set System) function enables you to set the current course as a new course in two simple steps.



Near Station Search Function (for IC-A25NE)

Near station search function screen
Near station search
function screen
The near station search function assists you in accessing nearby ground stations. The function searches for nearby stations using the station memories that have GPS position information. To use the near station search function, position data and frequencies of the ground stations must be programmed.



Built-in GPS Receiver with Simplified Waypoint NAV (for IC-A25NE)

Waypoint NAV screen
Waypoint NAV screen
The simplified waypoint NAV guides you to a destination by using current position information from GPS (also GLONASS and SBAS). The waypoint NAV has two functions: Direct-To NAV and Flight Plan NAV. Up to 10 flight plans and 300 waypoints can be memorized in the IC-A25NE.



Flight Plans with Android™ /iOS™ App (for IC-A25NE)

RS-AERO1I map screen example
RS-AERO1I map screen
example
©2017 Google-Map data
©2017 Google

Using the RS-AERO1A (Android) or RS-AERO1I (iOS) application, you can make flight plans on an Android/iOS device and import the plan into the IC-A25NE via Bluetooth. The following four functions are available: Create a flight plan, set Direct-To NAV, display flight plan information and display waypoint information.

Calculate your shipping

You currently don't have any products in your cart.

For a shipping estimate on this product, please select your region from the dropdown.

Specifications



IC-A25NE

IC-A25CE

NAV and COM NAV and COM channels COM channels
Frequency range Tx 118.000–136.992 MHz
Rx 108.000–136.992 MHz 118.000–136.992 MHz
Number of memory channels 300 channels/15 groups
Channel spacing 25/8.33 kHz
Type of emission 6K80A3E, 5K00A3E
Power supply requirement 7.2 V DC (BP-288), 11.0 V DC (External DC Jack)
Current drain (approximately) Tx High Less than 1.8 A
Rx Max. audio/Stand-by Less than 500 mA
90 mA typ. (GPS, Bluetooth, Light: OFF)
Antenna impedance 50 Ω
Operating temperature range −20 °C to +55 °C
Dimensions
(W × H × D;)
(Projections not included)
58.9 × 148.4 × 31.8 mm
Weight (approximately) 340 g (with BP-288)

Transmitter



IC-A25NE

IC-A25CE

Output power (at 7.2 V DC) 6.0/1.8 W (PEP/carrier)
Audio harmonic distortion Less than 10% (at 85% modulation)
Harmonics Spurious emissions Less than −36 dBm
(except operationg frequency ±1 MHz)
Frequency stability ±1 ppm

Receiver



IC-A25NE

IC-A25CE

Intermediate frequencies 46.35 MHz/450 kHz (1st/2nd)
Sensitivity NAV
(6 dB S/N)
Less than 0 dBμ
COM
(12 dB SINAD)
Less than 0 dBμ (with CCITT filter)
Squelch sensitivity (at threshold) Less than 0 dBμ
Adjacent channel rejection More than 60 dB
Spurious response More than 70 dB
Hum and noise More than 40 dB (at 90% modulation)
Audio output power More than 350 mW typ.
(8 Ω load/60% modulation at 10% distortion)
Ext. speaker connector 3-conductor 3.5 (d) mm (1⁄8ʺ)/8 Ω

Measurements made in accordance with EN300 676-2.
All stated specifications are subject to change without notice or obligation.

Applicable U.S. Military Specifications & IP Rating

Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Applicable U.S. Military Specifications

Standard
MIL-810 G
Method
Procedure
Low Pressure 500.5 I, II
High Temperature 501.5 I, II
Low Temperature 502.5 I, II
Temperature Shock 503.5 I-C
Solar Radiation 505.5 I
Rain Blowing/Drip 506.5 I, III
Humidity 507.5 II
Salt Fog 509.5
Dust Blowing 510.5 I
Immersion 512.5 I
Vibration 514.6 I
Shock 516.6 I, IV

Also meets equivalent MIL-STD-810 -C, -D, -E and -F.

Applicable IP Rating

Ingress Protection Standard
Dust & Water IP57 (Dust-protection and Waterproof* protection)
* One meter depth for 30 minutes.
