<<< NEW PRODUCT From ICOM >>>

FULL-DUPLEX Communication that Works Over Your Wireless LAN and IP Networks

  • Easy communication system to setup and use
  • Up to 100 users can communicate at the same time
  • Encryption provides extra security
  • Range is only restricted by your IP network coverage
  • No licence fee required, no call charges



Overview

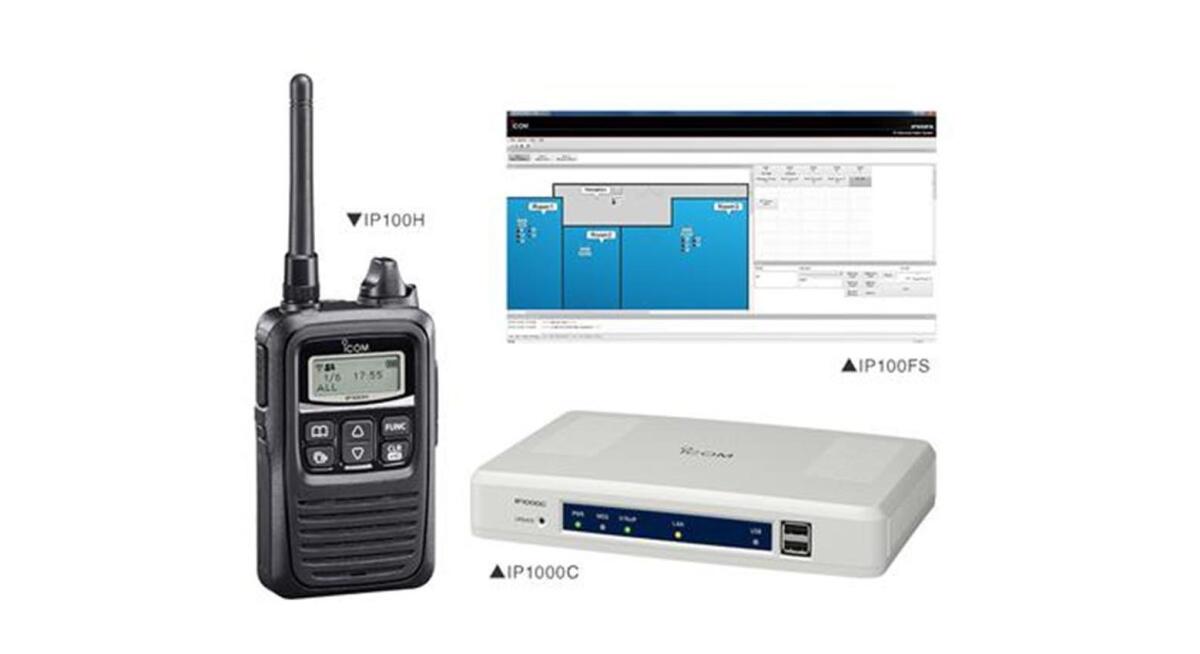

Icom’s IP100H WLAN or IP radio is a compact, yet powerful device.Measuring only 95 mm high and weighing 205 grams, the IP100H is one of the smallest professional radios on the market.

The IP100H is a wireless network radio and can move freely within the network. Adding several access points can easily expand coverage for your radio system.

The IP1000C controller that connects to the wireless network allows grouped users to hear and talk with another group. Individual calls are also possible. Full duplex communication (as with a regular telephone) can be used if enabled in the IP1000C controller and if a headset is connected to the IP100H.

  • Compact size, and lightweight
  • Up to 27 hours with standard BP-271
  • Supports full duplex with headset connected
  • Reliable sound quality
  • High security with encrypted communication* (*AES Encryption)
  • Vibration function for incoming calls
  • Waterproof in accordance with IPX7

<<< CLICK HERE FORM IP RADIO BROCHURE >>>

Versatility

The IP100H is ideal for use in many settings, including:

  • Warehouses
  • Restaurants/Cafés
  • Hotels/Museums
  • Shopping Malls/Department Stores
  • Security/Guards
  • Hospitals/Care

License-free radio for wireless networks (WLAN)

Icom's new radio system for wireless networks is a product that bridges the gap between license-free and licensed radio devices. The system is easy to connect to an existing wireless network and allows full duplex communication with reliable sound quality.

Icom’s new WLAN-based radio system offers scalable, license-free communication that uses standardized wireless network products as infrastructure. In several cases, said infrastructure is already in place.

License-free system

No radio licenses are necessary for the system as it uses standard WLAN networking products as infrastructure. The system uses the IEEE 802.11 a/b/g/n standard.

Scalable system

Communications are distributed across WLAN access points in an IP network which makes it easy to expand the system.

Secure encrypted communication

The wireless security protocols WPA-PSK and WPA-PSK2 encrypt the calls.

Simultaneous use

Many users in the system can transmit simultaneously. When a headset is connected to the IP100H, users can talk concurrently in full duplex – similar to talking on a regular telephone.

Localization of users

IP100FS software can connect to the network and be used as a fixed radio. It can call a user, send a message and can easily see which access point each user is connected to.

Easy maintenance

Most programming takes place wirelessly over the network eliminating the need to gather all radios every time a change is made.

Reliable sound quality

Since communication over a WLAN offers a wider frequency bandwidth and QoS priority packet delivery, the sound quality is higher than in a traditional radio communication system and is comparable to regular telephone communication.

Included

  • BP-271 Li-Ion battery
  • MP-127 belt clip
  • Short stub antenna
  • Antenna Cover (used for internal antenna)

IP1000C controller

IP1000CThe IP1000C is Icom’s wireless network system and keeps track of the radios in your network. IP1000C can also communicate with third-party manufacturers' WLAN access points allowing for great flexibility. It easily installs with existing IP1000C or new wireless networks.

  • Manages up to 100 IP100H/IP100FS devices in a single network
  • Up to 11 IP1000C can be interconnected to increase total number of IP100 radios on a network
  • Can be used in all standard wireless networks
  • Easy to install
  • Manages individual, group, or all-area calls
  • Optional OPC-1402 - Serial cable

IP100FS remote communicator

IP1000FSIP100FS is an IP-based PC-dispatcher and serves as an additional radio in your network. It handles all types of calls such as individual and group calls or text messages. Messages can be sent as free text or predefined. The program also has a map feature that allows you to see which radio stations are connected to the respective access point.

  • Functions like a traditional radio in the system
  • Uses the computer's built-in sound system
  • Map function
  • Optional CT-23 PTT microphone adaptor
  • Optional SM-26 desktop microphone
  • Optional HM-152 hand microphone

AP-90M

aP-90MAP-90M is Icom's own compact WLAN access point. It handles the use of both 5 and 2.4 GHz spectrum bands with a builtin high safety standard for encryption. The access point is equipped with various features such as load balancing, packet filters, and support for the PoE function. The entire functionality of the system can be monitored with the use of RS-AP3 software.

  • IEEE802.11a/b/g/n/ac compatibility
  • Handles 5 and 2.4 GHz bands simultaneously
  • IEEE802.11af PoE compatible
  • External antenna

Various communication options

Individual group or area call
Users at a hotel, for example can move around and communicate freely throughout the network.

Individual or group calls



Communication in a building*
The IP100H connects to the closest access point and then automatically moves between the different points in the network.
For proper IP configuration, contact your local IP Professional.

Intra-building communications


Communication between different locations
Allows communication between separate locations access points if the networks have been connected with VPN’s by an IP professional.

Multi-site communications


Hands-free with full duplex communication*
Hands-free operation allows you to communicate in the system while performing other tasks. You can also use full duplex in a group call.
*Vox headset required

Talking to warehouse


Radio systems for hospitals, hotels or offices

Radio systems for an existing wireless network
With Icom’s new IP radio, you can quickly establish a high quality network in a building by properly programming and connecting an IP1000C to an existing WLAN network.

You can upload groups and individuals to the network and control the entire system through a computer. The IP100FS software on the computer also has a map feature which makes it easy to locate all users.

Areas of use
An IP radio system is ideal for users who want to create a radio network using their own wireless network. Many hotels and offices have already invested in a wireless network, making this system a smooth and cost-effective solution.

Hospitals, hotels, restaurants, shopping centers and companies that conduct business indoors would benefit most from this system.

Advantages

  • Simple handling and easy installation
  • Convenient small devices with reliable sound quality can be used in the system
  • User groups can share a common channel and communication can be in simplex of full duplex, depending on programming
  • Cost-effective
  • Built-in security
Calculate your shipping

You currently don't have any products in your cart.

For a shipping estimate on this product, please select your region from the dropdown.

Specifications

IP100H

Frequency coverage

2412-2472 MHz (13 channels)

5180-5700MHz (19 channels)

WLAN standard IIEEE 802.11 a/b/g/n

Dimensions

(wxhxd)

58x95x26.4 mm (with BP-271)

2 9/23 x 3 47/64 x 1 3/64 in.

Weight

205 g (with BP-271 and antenna)

7.2312 oz.

Operating time Over 20 hours (with BP-271)
RF output Less than 10mW/MHz
Voice codec G.711 μ-law (64kbps)
Antenna impedance 50Ω
AF output

Internal 400mW (16Ω)

External 200mW (8Ω)

Security key

WEP (64/128-bit)

WPA-PSK (TKIP/AES)

WPA2-PSK (TKIP/AES)

Temperature -10° to +60°
IP100FS
Operating system

Windows 8/Windows 8.1 (32bit/64bit)

Windows 7 (32bit/64bit) SP1 or later

Windows Vista (32bit/64bit) SP2 or later

Windows XP (32bit) SP3 (64bit) SP2 or later (except WindowsRT)

CPU IntelCore 2 Duo Processor E6600/2.4GHz or better
Memory 2GB or more
Hard disk space 1GB of disk space (for log files)
Audio DirectSound audio (frequency range up to 20kHz, sampling rate 48kHz)
Screen resolution 1.0/1.5% typ. (wide/narrow)
Other USB 2.0 port, 10Mbps or faster Ethernet interface, speaker, microphone or headset
IP1000C
Power supply 100-240V AC (with supplied AC adaptor)
Temperature 0° to +40°
Dimensions (bxhxd)

232x168x38 mm

9 9/64 x 6 39/64 x 1 1/2 in

Weight

750 g

26.455 oz

LAN

RJ-45 connection x 4

1000 BASE-T/100BASE-TX/10BASE-T

(AUTO MDI/MDI-X)

USB Standard A x 2
Service connection RS-232C (RJ-11) connection
