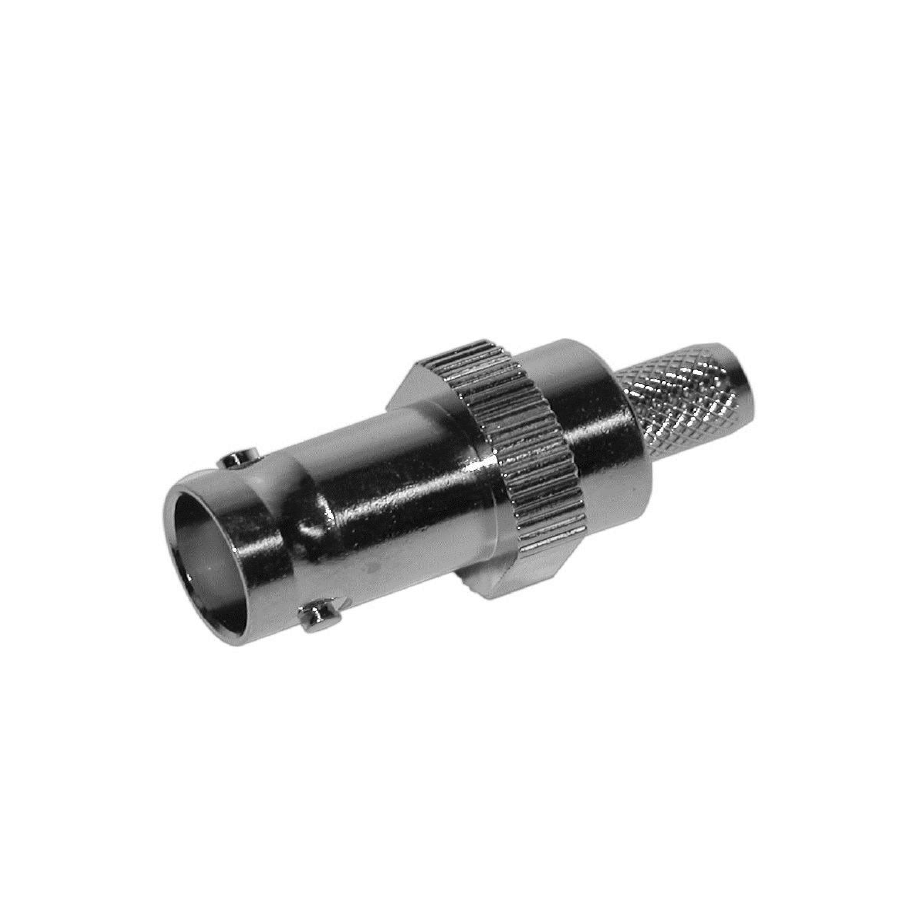

BNC86 Plug - RG58 Type Cable

NZD10.35 inc GST (NZD9.00 + GST) All prices on this website are in NZD

BNC-86 Features:

BNC connectors are similar to the TNC series but instead of a thread they use a bayonet coupling mechanism allowing a quicker connect/disconnect. BNC RF connectors are generally used within an operating range of DC to 4 GHz and are popular with many wireless applications requiring frequent connection and disconnection such as test equipment. Also available in reverse gender versions.

* All listed BNC connectors feature the standard 50 Ohm interface dimensions. 75 Ohm interface dimensional connectors and an expanded range of other BNC connectors are available.

RF connectors NZ

Calculate your shipping

You currently don't have any products in your cart.

For a shipping estimate on this product, please select your region from the dropdown.

Specifications



Impedance Ohms 50 Ohm
Center Conductor Crimp, captice
Crimp Set or Tool E
Centre Contact Crimp
Outer Contact Crimp
Mating Two stud bayonet coupling
Durability 500 matings
Coupling nut retention 100lbs Max
Cable Retention 40 lbs min
Temp. Range -65° to 165° C
Vibration MIL-STD-202 Test Cond B
Salt Spray MIL-STD-101 Test Cond B
Thermal Shock MIL-STD-107 Test Cond B
Max Frequency 4 GHz
